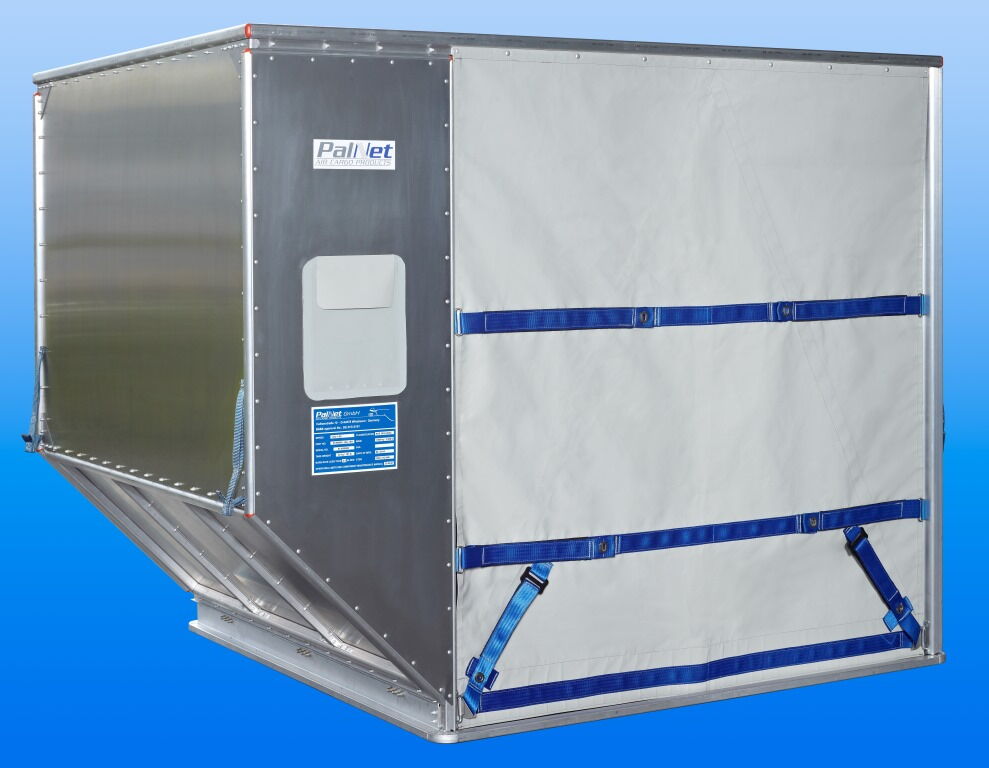

LD3/AKE Container
Our standard AKE container is constructed in a so-called panel design, i.e. each assembly is ready-made individually and only has to be assembled, i.e. riveted, to complete the AKE container. This cuts the construction time accordingly. Trained personnel who have been instructed by us can assemble this AKE container in a maximum of 30 minutes.
Data:
| IATA Designator | AKE |
|---|---|
| Design Specification | NAS 3610-2K2C |
| Part Number | 8136 0000 |
| Tare weight | from 78 kg / 172 lb |
| Base Size | 1,534 mm x 1,562 mm / 60.4" x 61.5" |
| Height | 64" / 1,626 mm |
| Roof Length | 79" / 2,007 mm |
| Max. Gross weight | 1,588 kg / 3,500 lb |
| AC Applications | A300 / A330 / A340 / A380 / B747 / B777 / DC-10 / MD-11 |
